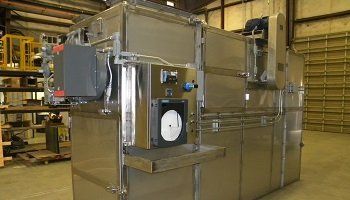

KLAMATH TRAY/TUNNEL DEHYDRATOR

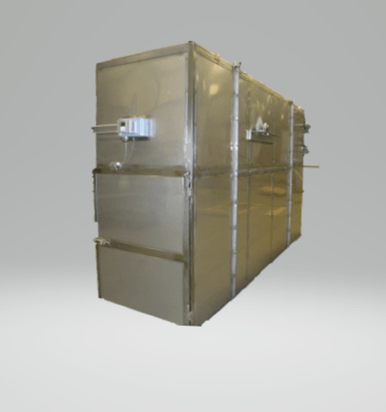

Klamath Dehydrator No Background

Klamath Overview

The Klamath III Tray/Tunnel Dryer is an outstanding example of the classic cabinet style dryer, with a twist, it is expandable! The powerful fan and direct fired gas burner provide uniform and consistent drying. The KIII is an excellent fit for the emerging company with a rapid growth potential. Through the use of additional sections, the KIII can double in size from 760 sq. ft. to 1520 sq. ft. at a minimal cost. For a quality dryer that grows with your business, ask for the KIII Tray Dryer.

Download Brochure
Klamath Main Screen
Energy Efficient Text - 2
Klamath Dehydrator Schematics

Features/Benefits

  • UL EPH approved for food sanitation safety
  • Operates on your choice of natural gas, propane gas or butane mix
  • Double-walled stainless steel insulated construction helps to retain heat and bring down the cost of operation
  • 760 sq. ft. of drying space between 120 trays that are 24 in. by 38 in
  • Note: This machine is expandable to up to 2 more sections, with 2 racks per section, each giving you an additional 380 sq ft. Fully extended this machine becomes 1520 sq ft. of tray space
Download Brochure
Expandable Text

Features/Benefits

  • 1.3 Million BTU gas fired burner.
  • Variable fan speed available
  • Required proper ventilation from building for both the intake and exhaust. Filtered intake and exhaust options available
  • Automated Humidity Control System comes standard
  • Maximum operating temperature of 220°F/104°C
  • Unit weighs approximately 10,500 lbs. for the standard model with stacks for up to 20 ft ceiling, plus an additional weight for each extension
Klamath Cover Hybrid - 4

Specifications:

  • Thermostatic Temperature Control (from ambient to 220°F)
  • Powerful 18" fan
  • Direct fired gas burner


Dimensions:

  • Height: 9-feet 9 1/4-Inches
  • Width: 4-feet 7-inches
  • Depth: 13-feet 10-inches (fully expanded becomes 21+feet)

Estimated Operating Costs

Specifications

Model: KLAMATH KIII

Fan Motor HP: 10 HP

Heat Type: Gas Burner

Max Load: 1,300,000 BTUs

Average Electric & Heat Loads

Average Fan Load: 12 kW/hr (12,000 watts)

Average Heat Load: 390,000 BTUs

Average Hourly Cost

3.9 Therms x $2.42 = $7.55

12 kW/hr x $0.12 = $1.44

Total Average Cost = $8.99/hr

Note: All heating loads were computed based on a 40% consumption rate. This is an average figure, and may not accurately represent all applications. Energy costs may vary. Please check utility rates or your area.
